Forged Threaded Fittings: What You Should Know
Forged Threaded Fittings: What You Should Know
What is the meaning of a forged threaded fitting?
Forged Threaded fittings are utilized in pipeline applications where the bore and diameter of the pipes are less. When employing threaded fittings, the pipe's nominal diameter should be about 2 NPS or less. The Forged Threaded 90 Degree Elbow is said to be one of the oldest types of forged fittings in use.
What are some of the advantages of threaded forged fittings?
- The usage of a Forged Threaded 90 degree Elbow reduces the number of different types of equipment required.
- The use of threaded fittings reduces the number of joints.
- A male or female thread can be used to connect a variety of pieces of equipment.
- A threaded fitting may be installed without the use of any special tools.
Here are a few important pointers to remember while installing forged threaded fittings:
- In the female threads, always use a male PVC thread. Reversing this procedure might cause the pipe to break.
- The thread tape should always be wound in the same direction as the thread. This guarantees a secure and long-lasting seal.
- Hemp should not be used on threads. When hemp comes into touch with water, it expands. The pipe may shatter as a result of this.
Forged Threaded Fittings Uses:
It's important to note that forged threaded fittings aren't designed for high-pressure situations. The following are some of the most popular applications for forged threaded fittings:
- Cooling system and water distribution
- Fire hydrants and fire protection, etc.

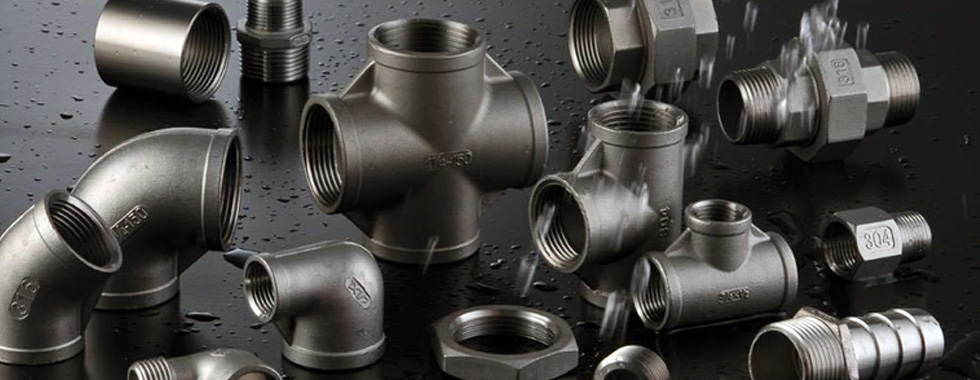

Let's have a look at some common Forged Threaded Fittings:
Forged Threaded Elbow: Pipes with a 90-degree angle change are connected using threaded 90 degree elbows. Pipes with a 45 degree angle change are connected using threaded 45-degree elbows.
Forged Threaded Tee: From the main pipe, this fitting creates a perpendicular or 90 degree branch. The following are the two types of tee fittings:
- Equal tee: The Branch and Main pipes are the same size.
- Reducing Tee: The branch pipe is smaller than the main pipe.
Forged Threaded Cross: A four-way connecting junction is a forged threaded cross fitting. There is one input and three outlets on this fitting. There are three directions in which chemicals flow. Female threads are used in cross fittings, which ensure secure connections.
Forged Threaded Coupling: There are full and half couplings available for these fittings.
Forged Threaded Pipe Cap: Pipe ends are sealed with threaded piping caps.
Forged Threaded Plug: To seal or blind a joint, a threaded plug is utilised. Threaded plugs are divided into three categories:
- Threaded Square plugs
- Hex Head Plugs
- Round Head Plugs
Forged Threaded Bushing: The hex or hexagonal shaped head of these fittings is used to link threaded pipes of various diameters.
Forged Threaded Union: Threaded unions are made up of three parts that are all joined. The threaded union is divided into two categories.
- Male to Female
- Female to Female
To connect the pieces of equipment, a lug nut is employed.
